RTRY-320E roll to roll adhesive sticker flexo label printing machine

FOB Reference Price:Get Latest Price
US $1,000-70,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Flexographic Printer
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ruiting
Model Number:
RTRY-320E
Usage:
Bill Printer, Label Printer, Paper Printer
Automatic Grade:
Semi-Automatic
Color & Page:
Multicolor
Voltage:
220V/380V
Gross Power:
2m*1.5m*2.6m
Dimensions(L*W*H):
2m*1.5m*2.6m
Weight:
2200KG
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Max. material width:
320mm
Plate thickness:
1.7mm
Max.speed:
60m/min
SupplyAbility
SupplyAbility:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Ningbo/Shanghai
Lead Time :
Shipped in 30 days after payment

adhesive stikcer label printing machine roll to roll press



1.The main motor adopts imported stepless frequency control.
2,Feeding and discharging device are controlled through magnetic powder brake and clutch (Japanese Mitsbish aut tension controller).
3,Adopt ceramic mesh distrnic mesh distributor roller,which is durable,wear proof,corrosion resistance.It is favorable to reduce the replacement frequency of mesh roller and improve the printing efficiency.
4,The printing unit can register in 360degress;each printing unit can mesh roller and improve the printing efficiency.
5,Every printing unit equipped with a group of infrared dryers respectively.
6,The redding and discharging device use air-expansion core shaft.
7,The inking roller can automatically fall off at stoppage and ratate at low speed in order to keep the ink from being dry and solid.
8,The roll feeding,printing,polishing,auto infrated drying,laminating and rolling can be processed in one processing.

9.It features wide application,pollution-free of printing ink,high economic benefit,and high printing speed.So it is an ideal printing machine for the commercial bill,paper card,and high-class free adhesive label.



Machine Parameter



Printing speed
60(m/min)
Printing color
5 (color)
Max web width
320mm
Max printing width
310mm
Max feeding diameter
500mm
Max winding diameter
500mm
Precision girth
175-320mm
Precision of overprint
±0.1mm
Overall dimensions(L*W*H)
2m*1.5m*2.6m
Machine weight
(aboutt)1200kg

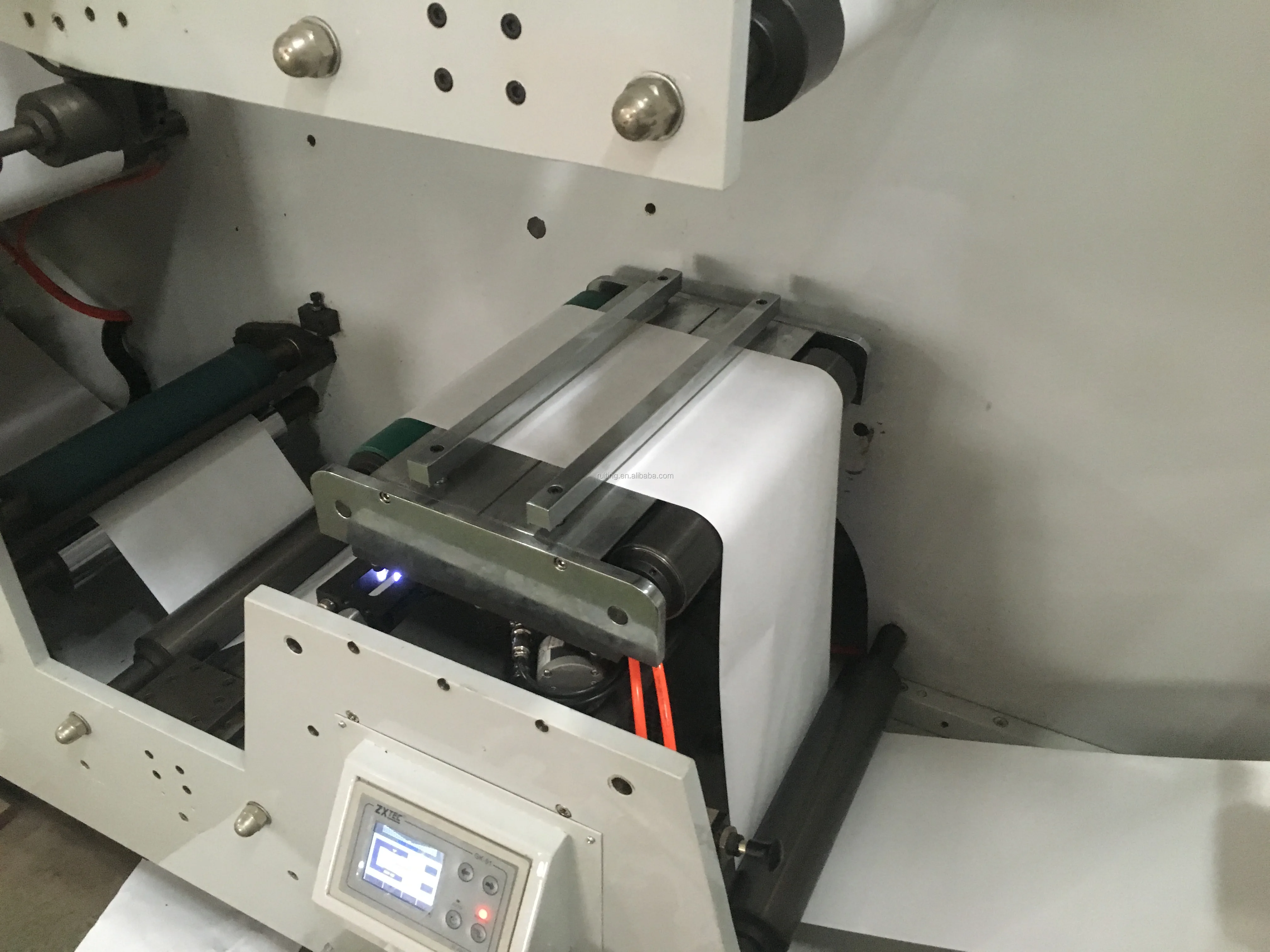

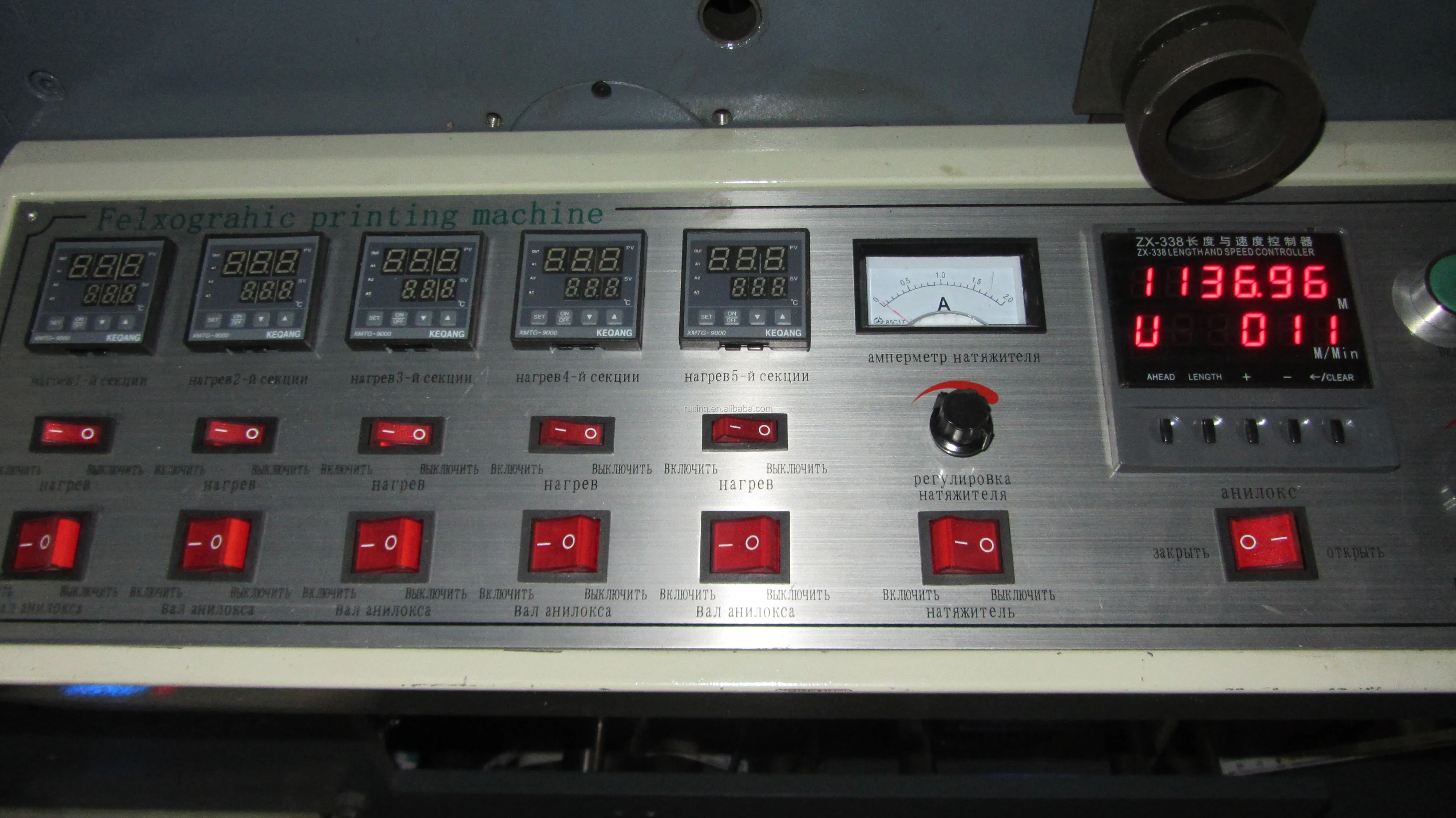

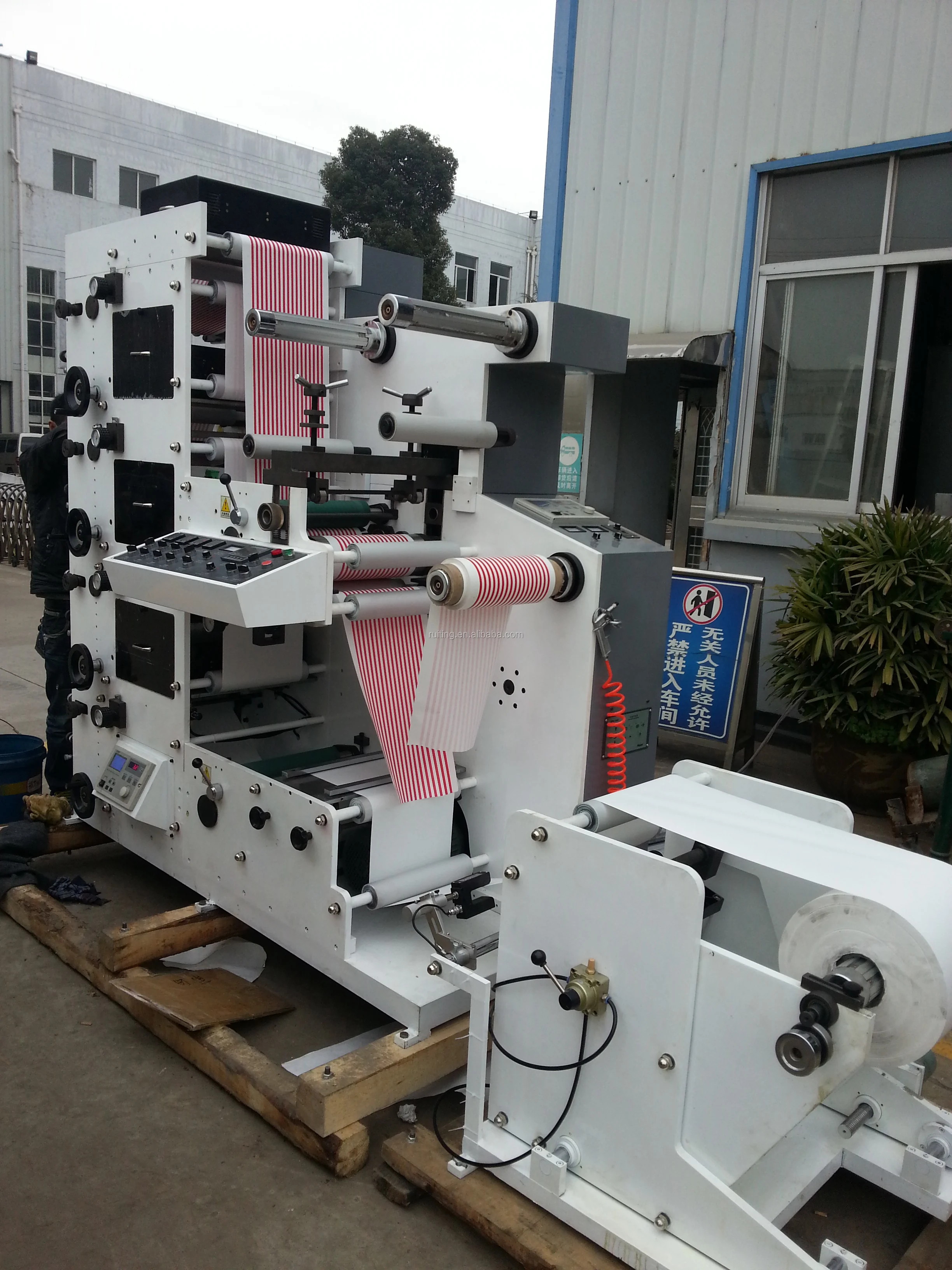

Machine show:
