RTFQ-1500BC web foil sticker label slitting machine

FOB Reference Price:Get Latest Price
US $1,000-60,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ruiting
Model Number:
RTFQ-1500BC
Voltage:
380V/220V
Power(W):
13kw
Dimension(L*W*H):
2.2m*2.8m*1.5m
Weight:
3700KG
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Max. material width:
1500mm
Max. unwinding diameter:
600-1000mm
Max. rewinding diameter:
500-700mm
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed by wooden case
Port
Ningbo/Shanghai
Lead Time :
Shipped in 20 days after payment

RTFQ-1500BC web foil sticker label slitting machine

1. This machine is suitable to slit paper,composit material, aluminium foil, printing film,PE,PP,PET,PVC
such plastic film, etc.It is an ideal machine for
printing packing comparry for processing.
2.Enlire machine is conrrolled by PLC(two vector motors),man-machine interface,screen louch operation.
3.Unwind part adopts imported pneumatic brake control,
the rolling diameter is automatically calculated by PLC,
to achieve constant tension control.
4.Traclion control is drive by a veclor variable frequency motor,to achieve constant linear velocity control,
And effectively cut off inleractant tension between rewind and unwind.
5.The rewind shaft uses firction,is driven by a vector frequency motor. The rewind tension control is according
to rewind diameter,thickness, tension set, etc.After operation by the PLC output control signals, via control of
the friction pressure, to achieve the purpose of winding tension.
6.Unwind part adopts hydraulic power feed, shaftless, which can save much labour force,and shoten time.
7.Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8.The feature of machine is stability,security, efficienct,etc.



Product parameters:

Max web width
1500mm
Max rewinding diameter
500-700mm
max unwinding diameter
600-1000mm
Min width
20mm
Cutting precision
0.3mm
Power voltage
10KW
Cutting peed
10-300m/min
Overall dimensions(L*W*H)
2.2m*2.8m*1.5m
Machine weight
3700kg

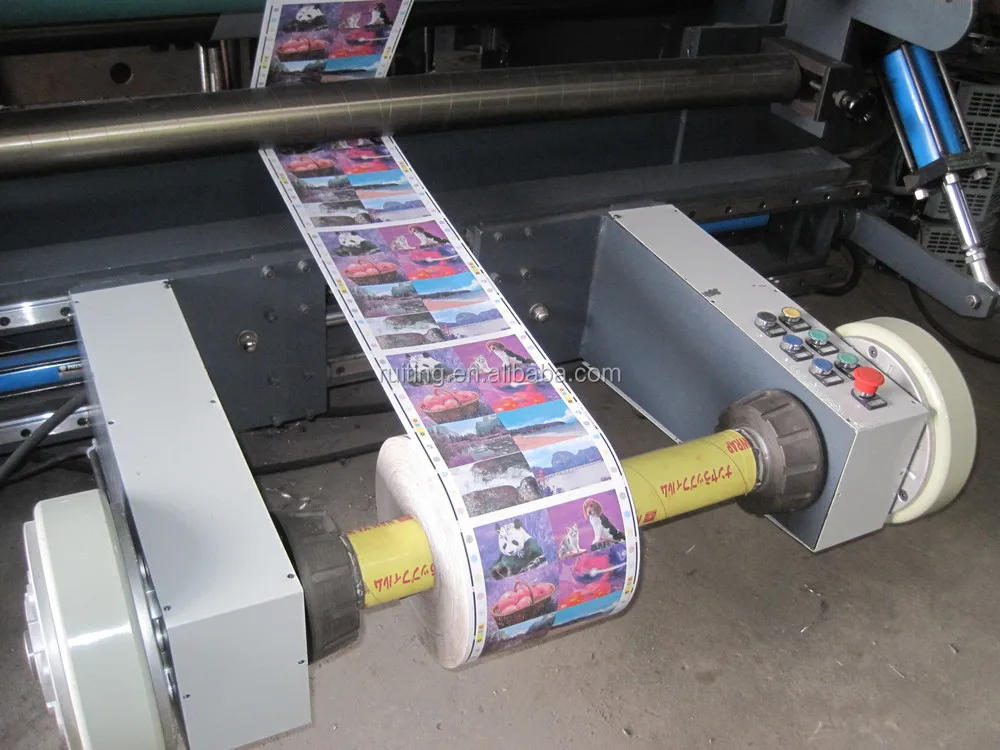

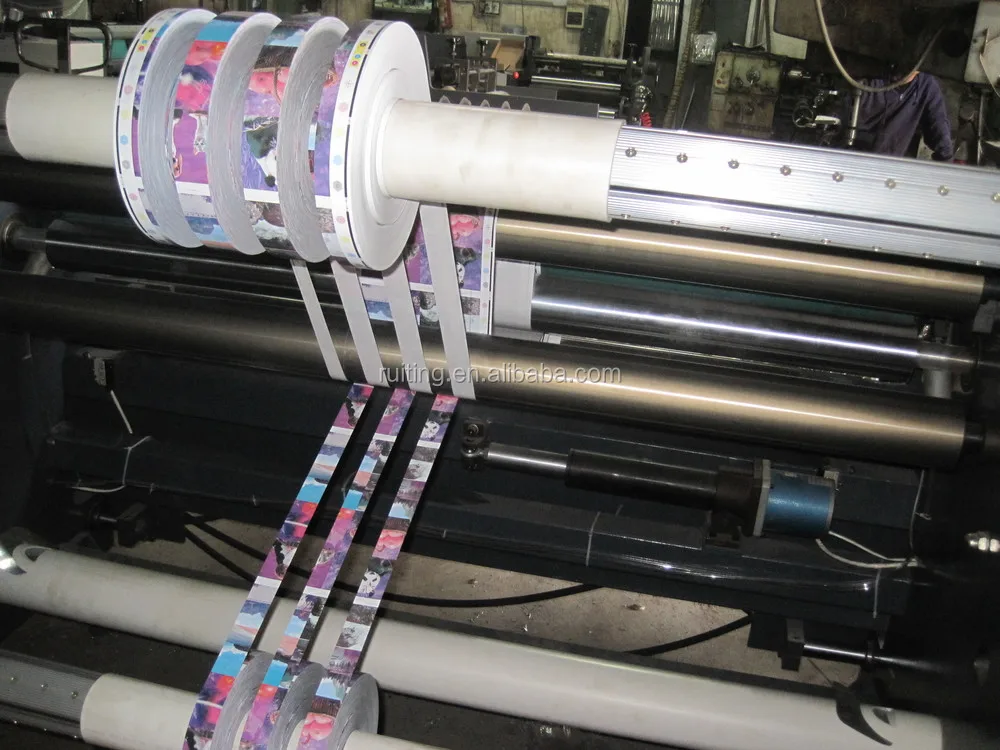

Machine detailed pictures:













3.1
