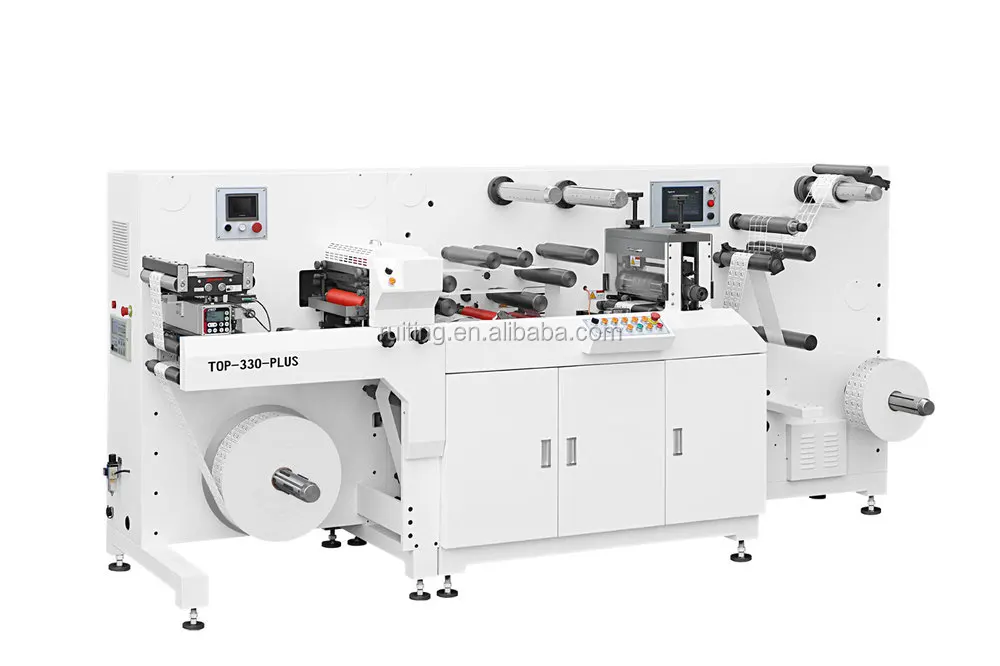

TOP-330F high speed plus servo control rotary label die cutter with flexo printing system

FOB Reference Price:Get Latest Price
US $1,000-65,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Paper Cutting Machine
Automatic Grade:
Automatic
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ruiting
Model Number:
TOP-330F
Voltage:
220V/380V
Power(W):
16kw
Dimension(L*W*H):
3600mm*1200mm*1500mm
Weight:
3000KG
Certification:
CE
Max. material width:
330mm
Max.Die cutting speed:
300Cyles/min
Max Die Cutting Area:
350mm*290mm
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Ningbo/Shanghai
Lead Time :
Shipped in 30 days after payment

1. Characteristics:
TOP-330 PLUS is improved from the TOP-300 machine, the system is modular designed with solid platform: Flexographic printing system (Cold stamping, UV coating, super varnishing, dot varnishing),lamination ,rotary screen printing system, semi-rotary die cutting system, sheeting&collection, rewinding.
Advanced central control system with servo driven system, humanized operation design, high accuracy re-register system, provide you higher quality and efficiency.
2. Main technical parameter:

Max Speed

300RPM

Register Accuracy

±0.15mm

Accuracy of Cutting

±0.15mm

Max Printing Width

290mm

Printing Girth

55T-160T

Max Print Area

508mm×290mm (L×W) (160teeth print cylinder)

Max Die Cutting Area

350mm×290mm (L×W)9mag. Cylinder in 120Teeth)

Paper Width

80mm---300mm

Max Unwinding Dia.

φ700mm(about 2000Meters)

Max Rewinding Dia.

φ700mm(about 2000Meters)

Magnetic Cylinder

120Teeth 1/8 (Standard)

Length of Die Cutting

50mm~330mm

MOTOR Power

8 KW

UV Lamp Power

7.5KW

Overall Diameter(L×W×H)

3600mm×1200mm×1500mm

weight

3000KG

3. Standard Unit:
Unwinder--web guider--Flexo system(UV coating&printing&Cold foil)----Die cutting(Semi-rotary and Rotary) ---Rewinder
4.Standard configuration:
A:Unwinding
B:Web Guider
C:120teeth/381mm magnetic cylinder.(15inch cylinder)
D:Servo motors(Panasonic imported from Japan)
E:HMI Touch screen operating system(Schneider+PLC)
F:Flexographic printing system with re-register&Foil laminator
G:UV system.in 220W/CM
5.Options:
Ps:these offers are valid in 2 month.
6. Delivery time: 60 days
7.Payment terms: T/T.30% deposit in advance, and 70% balance payment before shipment
