WON-330 high speed auto servo driven turret slitting machine for sale(with single rewinder)

FOB Reference Price:Get Latest Price
US $500-30,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Slitting Rewinder
Computerized:
No
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ruiting
Model Number:
WON-330
Voltage:
380V/220V
Power(W):
15KW
Dimension(L*W*H):
1.75m*1m*1.2m
Weight:
1000KG
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Max. material width:
330mm
Max. unwinding diameter:
500mm
Max. rewinding diameter:
450mm
Max. speed:
300m/min
SupplyAbility
SupplyAbility:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed by wooden case
Port
Ningbo/Shanghai
Lead Time :
Shipped in 30 days after payment

WON-330 turret slitter rewinder is designed for exclusive level label finishing,based on top configuration and Human machine Interface,with optional functions for choice,competitive productive slitting rewinding speed up to 300meeters/min,fit for excellent efficiency & qualified slitting need.




Features:
1.Automatic web guider:smooth paper in feeding and rewinding
2.Full servo system:paper infeed,outfeed.,rewinder driven by servo motors
3.Easy amount set up:meters,labels amount preset with machine deceleration system,material end roll stop
4.Brush press unit:make easier to finish the rewinding rolls
5.Tag reject:option system,the machine stop automatically inspection data(defect marked in the roll map) transfer
Price:
6.Option:single rewinder,separate dual rewinder,
pneumatic blade,razor.etc



 Product parameters:



slitting speed
5-300(m/min)
Max web width
330mm
Max unwinding diameter
500mm
Max rewinding diameter
450mm
Overall diameters
1.75m(L)*1 .1m(W)*1.2m(H)
Machine weight
(about)1000kg

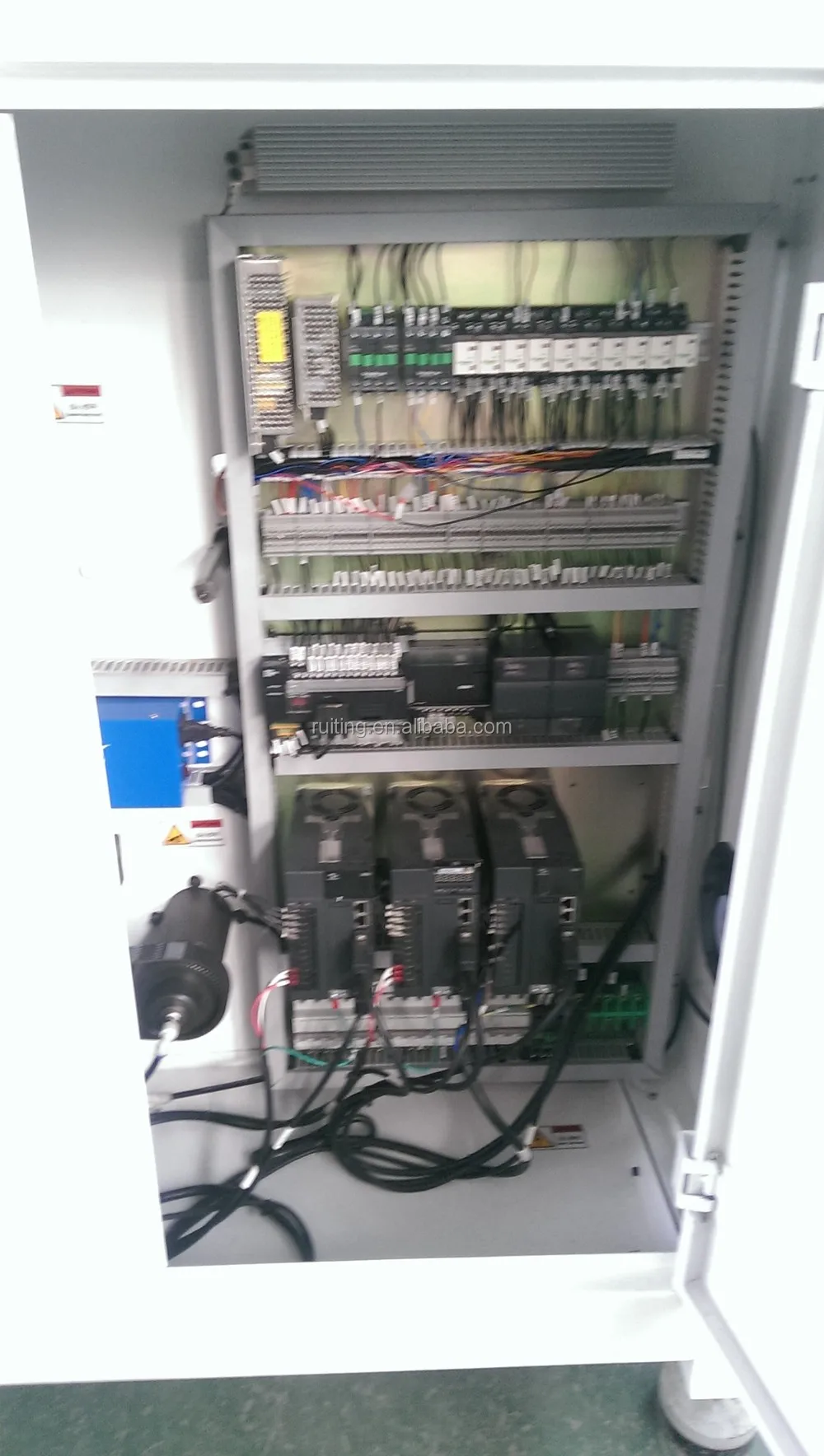

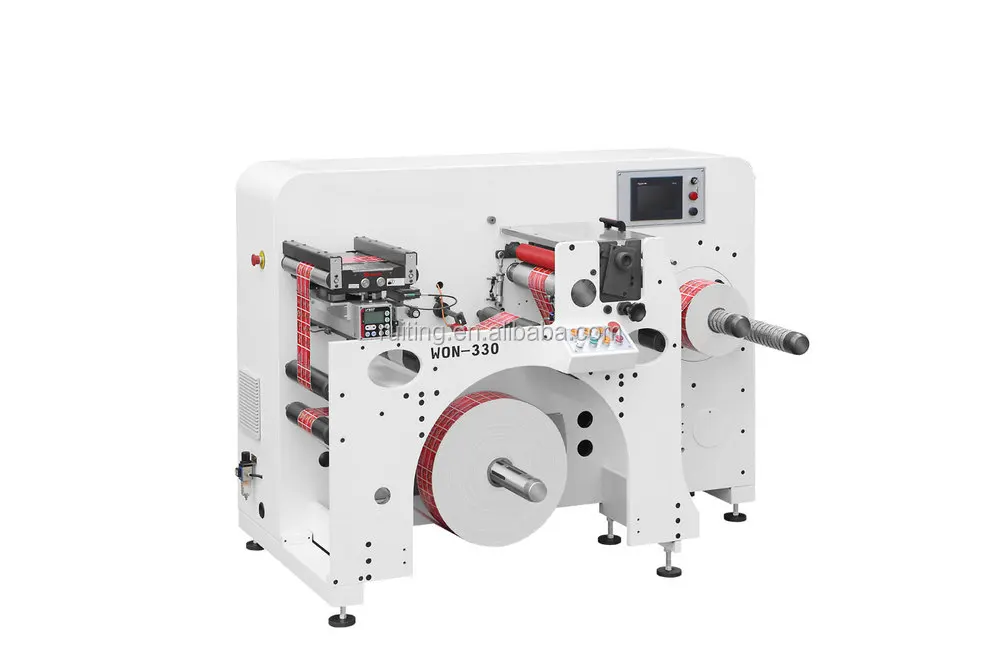

 Machine detailed picture:



WON-330.jpgWON-330 BACKSIDE4.jpg
