RTQH-450 Two rotary die cutting station with slitting and dual rewind

FOB Reference Price:Get Latest Price
US $1,000-20,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
Ningbo/Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Paper Cutting Machine
Automatic Grade:
Semi-Automatic
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ruiting
Model Number:
RTQH-450
Voltage:
220V/380V
Power(W):
3.5kw
Dimension(L*W*H):
2.25m*1.0m*1.7m
Weight:
1400KG
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
Max. material width:
450mm
Max.Die cutting speed:
100m/min
Packaging & Delivery
Packaging Details
wooden case
Delivery Time
Shipped in 15 days after payment

Two rotary die cutter station

 This machine is a new product with rotary die-cutting function. It equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive lables. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelecric eyes. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Standard configuration
1. One slitting station
2. With 1pc 3"unwinding shaft, 2pcs 1" shaft for rewinding
3. With meter/number counter
4. With one photoelecric eyes
5. With 8pcs rotary knife
6. One magnetic brake, two magnetic clutches



Machine parameter

             Slitting speed

 100m/min

Die-cutting speed

100m/min

Max.web width

450mm

Die-cutting length

178mm-470mm

Max. unwinding diameter

600mm

Max. rewinding diameter

600mm

Overall dimensions

2.25m*1.0m*1.7m(L*W*H)

Machine weight

1400KG

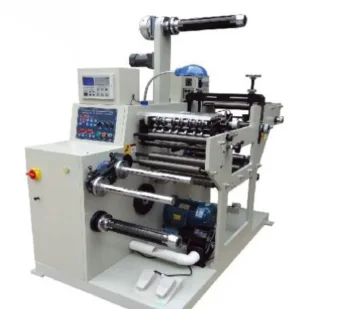

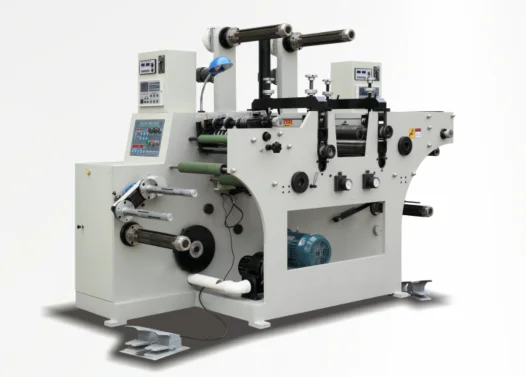

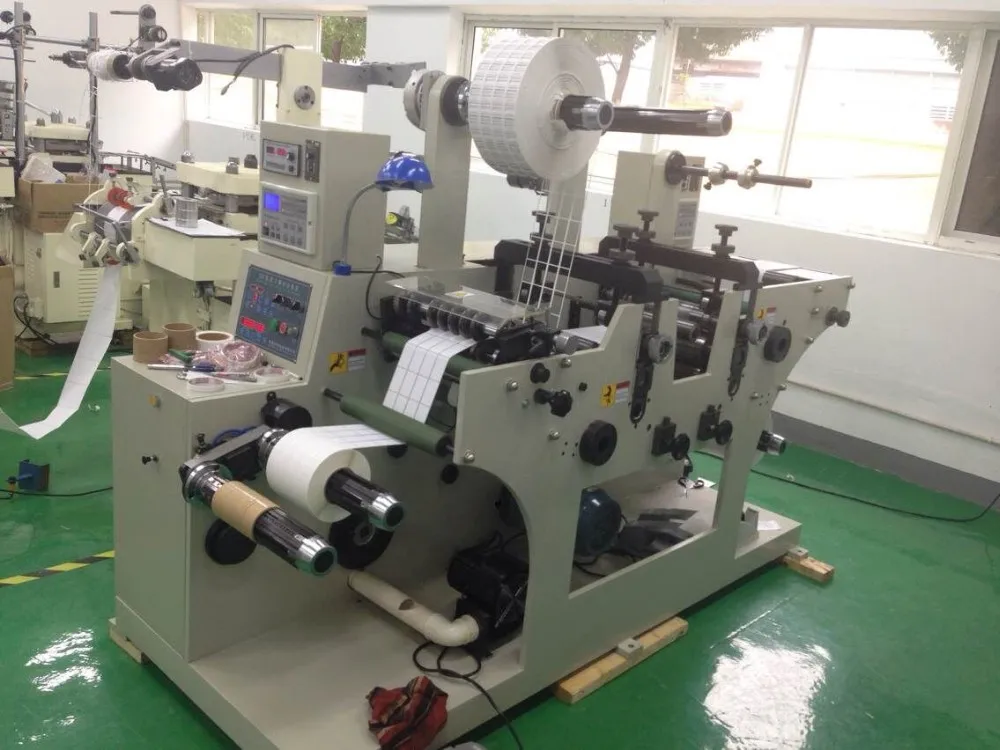

Machine picture:
