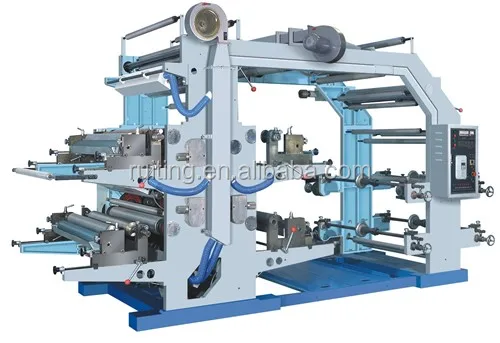

YT-4800 shopping bag printing machine supermarket plastic bag logo printer 4 colors

FOB Reference Price:Get Latest Price
US $3,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Flexographic Printer
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ruiting
Model Number:
YT-4600
Usage:
Bill Printer, Label Printer, Paper Printer
Automatic Grade:
Semi-Automatic
Color & Page:
Multicolor
Voltage:
220v/380V
Gross Power:
15kw
Dimensions(L*W*H):
4.5m*1.6m*2.5m
Weight:
2500kg
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Max. unwidning diameter:
450mm
plate thickness:
2.38mm
SupplyAbility
SupplyAbility:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
in wooden case
Port
Ningbo/shanghai
Lead Time :
Shipped in 15 days after payment

YT-4800 shopping bag printing machine supermarket plastic bag logo printer 4 colors is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.





1. Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

4. The printing ink is spread by the anilox cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360°continuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

9. Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.

10.Unwind with auto deviation  correction system





Machine Parameter



ModelYT-4800
Max. printing material width800mm
Max. printing width760mm
Printing length range191~914mm
Max. unwinding diameter450mm
Printing speed5~50m/min
plate thckness(include two-sides gule paper)2.38mm
Total power18Kw
Machine weight2700 kg

Overall Dimensions

4500×1800×2500mm
