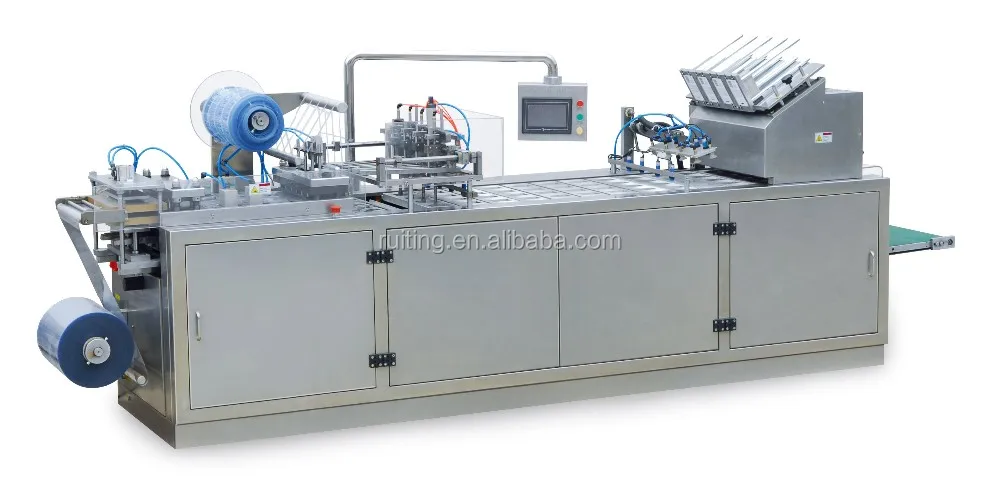

hook knife mini blister packing machine for hardware

FOB Reference Price:Get Latest Price
US $10,000-50,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Blister Packaging Machine
Condition:
New
Application:
Chemical, Commodity, Machinery & Hardware
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
7kw
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ruiting
Model Number:
TZP500
Dimension(L*W*H):
3700*900*1650mm
Weight:
1500kg
Certification:
ISO9001
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Packing Material:
battery/lip stick/toothbrush
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Ningbo/Shanghai
Lead Time :
Shipped in 50 days after payment





Workflow:

PVC feeding

PVC heating & forming

Blister towing & punching

Waste material collecting

Mechanical hand picking blisters into sealing molds

Inspecting the blister

Feeding automatically or by hand

Feeding & inspecting cardboard

2times heating under high pressure

Finished products







Model

RTZP-500

Packing Material

PVC sheet thickness

(0.15-0.5)*(330-460)mm



Cardboard             200g-700g

Compressed air

pressure (0.55-0.85)Mpa



air consumption quantity≥0.3m/min

Power consumption

380V50Hz    7-12Kw

Mould cooling water

Running water or circle water consumption50L/h

Overall dimension

L*W*H(3600-4300)*900*1650mm

Weight

1500-2300Kg

Production capacity

10-30 punches/min

Travel range

50-(130-180)mm

Max area of cardboard

500*(125-220)mm

Max forming area and depth

(310-440)*(120-180)*(16-45)mm

(According to customer's requirement)



 dzp-500

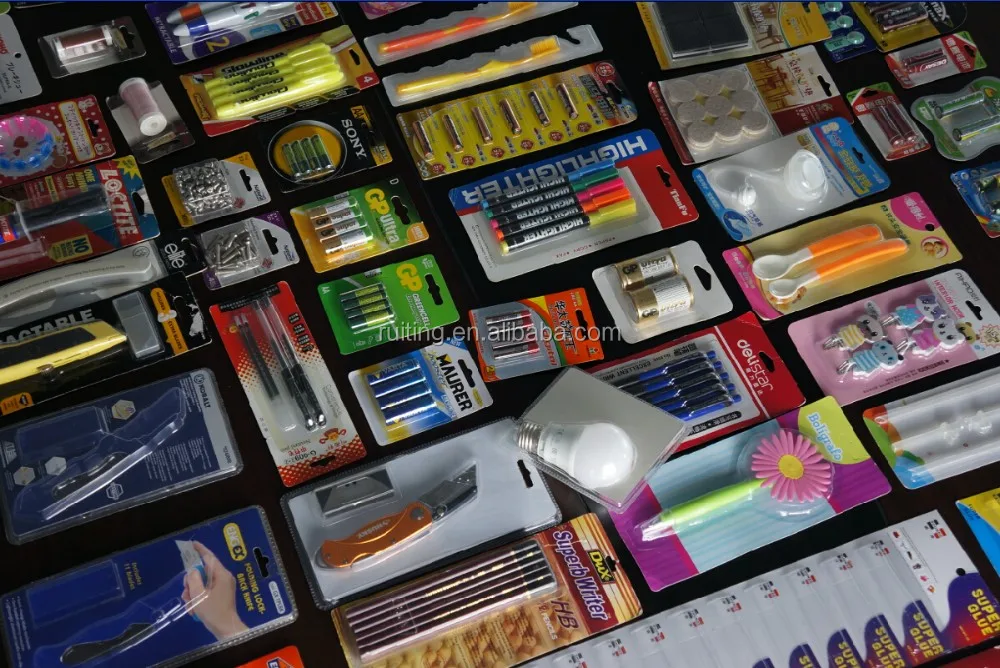

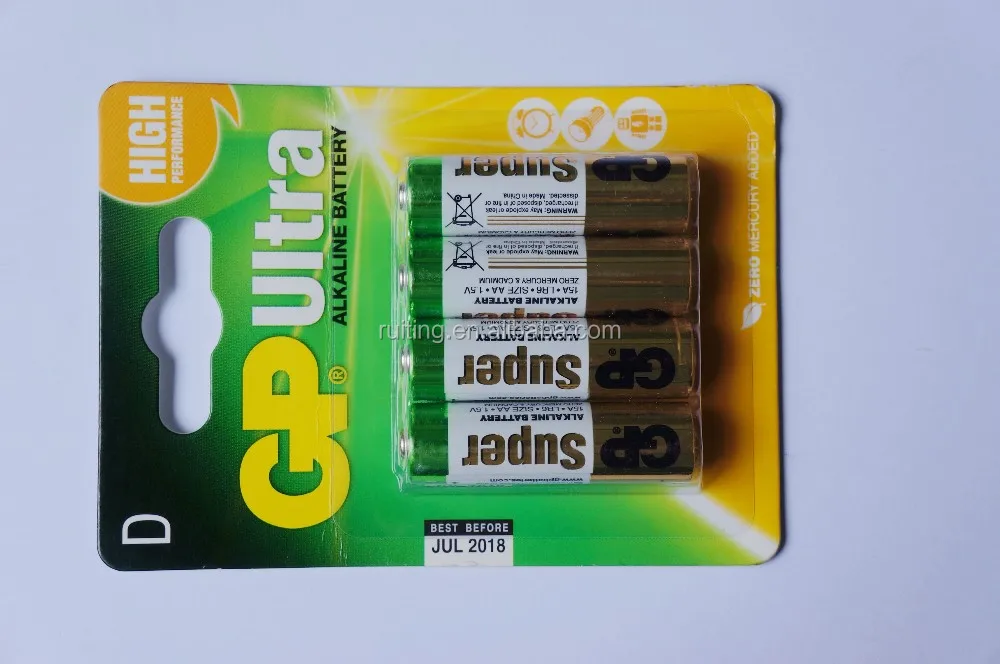

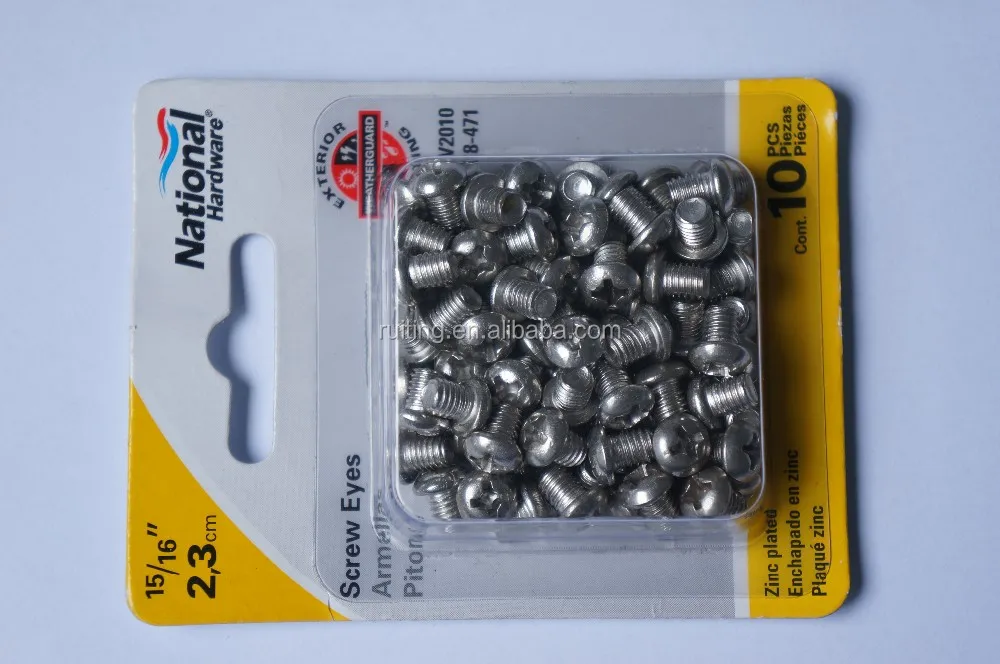

blister samples.jpgDSC02122.JPG
