automatic paper cup form machines automatic used paper cup machine

FOB Reference Price:Get Latest Price
US $15,000-20,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
1 Set/Sets per Month
Port:
NINGBO/SHANGHAI
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
paper products forming machine
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ruiting
Voltage:
220V/380V 50Hz
Power(W):
6kw
Dimension(L*W*H):
2800*1400*1800mm
Weight:
2800kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Automatic Paper Cup Machine Paper Cup
Color:
Customized Color
Size:
3-12oz(Mould changeable) Suitable paper
Working Air Source:
0.4-0.5m3/min
Paper Cup Size:
3-12Oz
Speed:
60-75 pcs/min
Cup top diameter:
45-90mm
Cup bottom diameter:
35-75mm
Cup height:
30-115mm
Paper meterial:
single or double PE coating paper
Packaging & Delivery
Packaging Details
In wooden case
Delivery Time
within 30 days
Product Description



Detail:

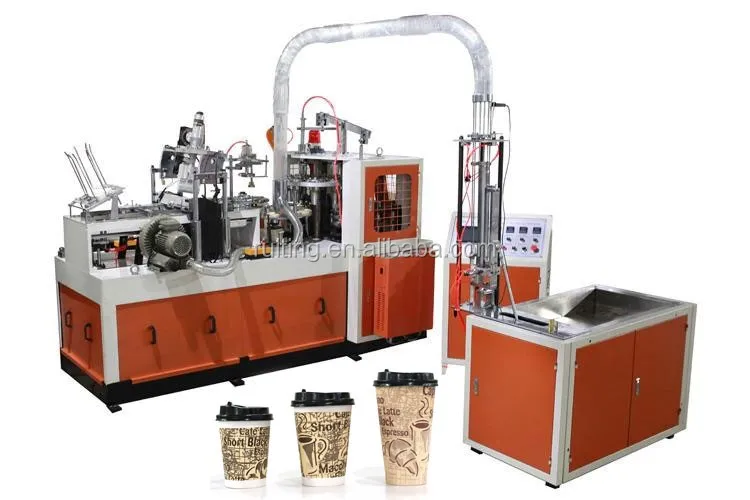

Our newly designed paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre

heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.





Model

 Automatic Paper Cup Machine

Paper Cup Size

3-120z(Mould changeable)

Raw Material

180-300g(One-side or Two-side PE (polyethylene) film coated / laminated paper)

Suitable paper weight

180-300 g

Productivity

60-75 Pcs /Min

Power Source

220V/380V 50Hz

Total Power

6 KW

Total Weight

2800KG

Package Size(L x W x H)

2800x1600x1800mm(LxWxH)

Working Air Source

0.4-0.5m3/min

Making Double PE coated paper cups, need to buy an air compressor






    A:Cup top diameter          min 45- max 90mm

    B:Cup bottom diameter     min 35-max 75mm

    C:Cup height                     min30-max115mm

    D:bottom knurling height    min4 - max12mm

    E:top curling diameter        minΦ2.5-maxΦ3















From the above image, the steps in the red box are finished in our paper cup

The whole steps are :

1 . Buy the cutted bottom-using rolling paper and cup-side-using sheet paper from PE coated paper suppliers ; In this step, the suppliers will cut the paper sizes according to your requirement.
2 . Pre printing and pre cutting, you can let them done out-serve or buy machines to finish them ;
3 . Forming Cups in paper cup machines ; The same for paper bowl/bucket.

4 . Packing the finished cups in plastic bags and then to cardboard box.

 Cups and Bowls and Plates samples show:
